TrolMaster Dry Contact Board (OM-8)

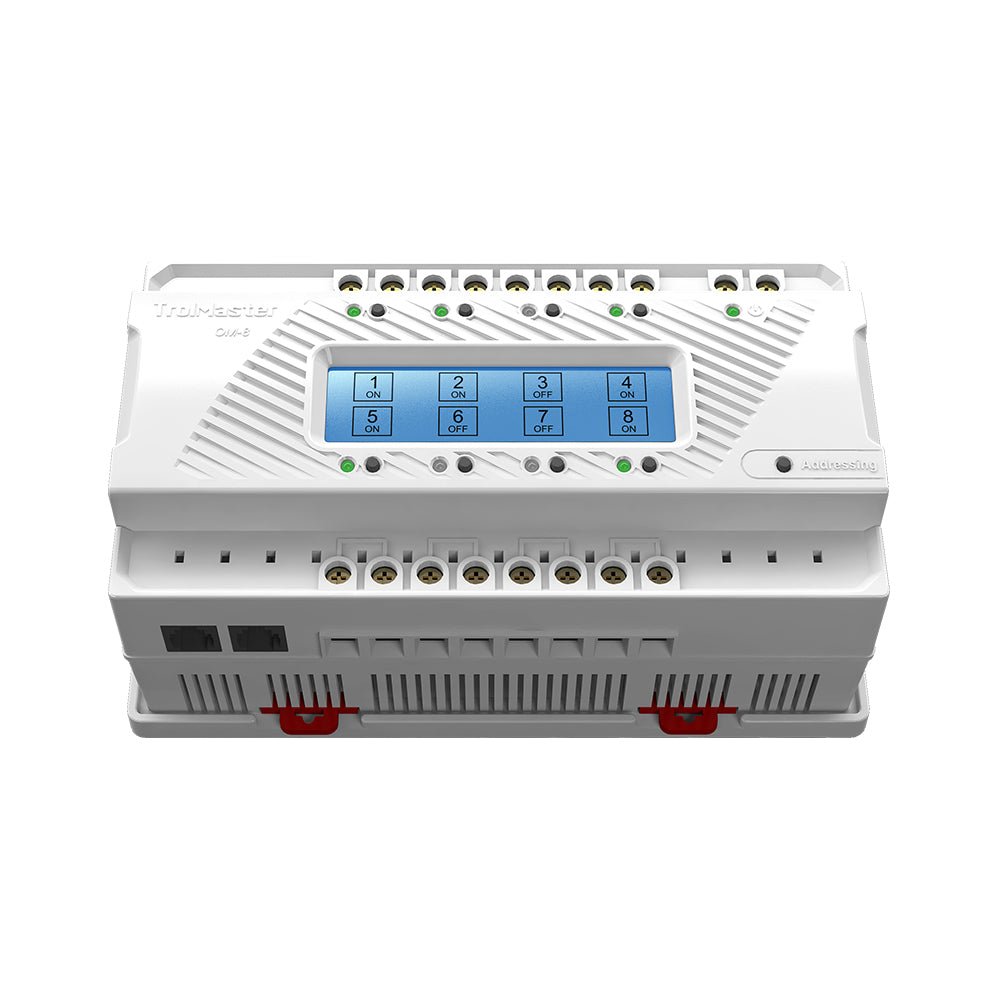

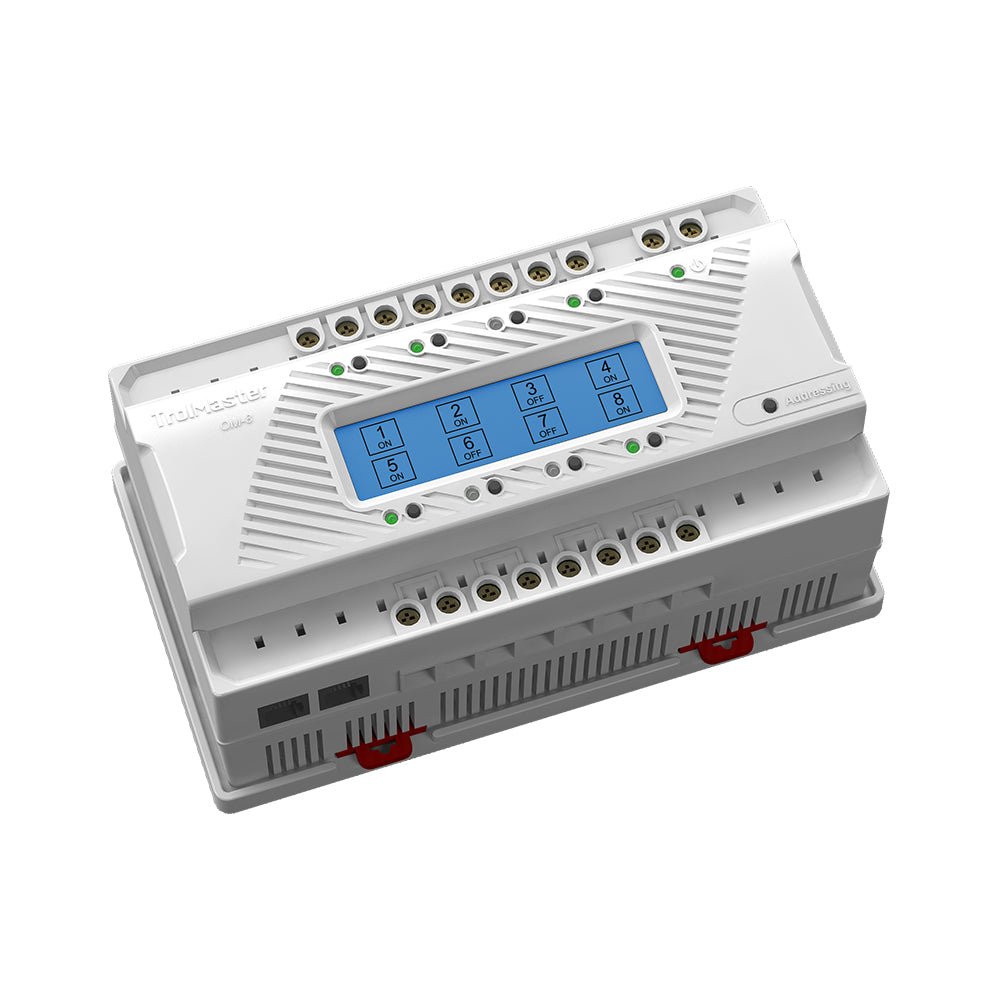

The OM-8 dry contact board allows the main controller to control up to 8 individual outputs on it. It is specially designed for the Hydro-X Pro and Aqua-X Pro system. It has 8 individual electrical contacts and allows up to 12 Amp current through each contact. *The OM-8 should be mounted inside an electric control cabinet, and connected to a power supply between 100-240 VAC.

Each of the 8 separate outputs can be configured to control a range of devices: cooling, heating, dehumidification, humidification, lights, CO2, and even irrigation pumps or solenoids.

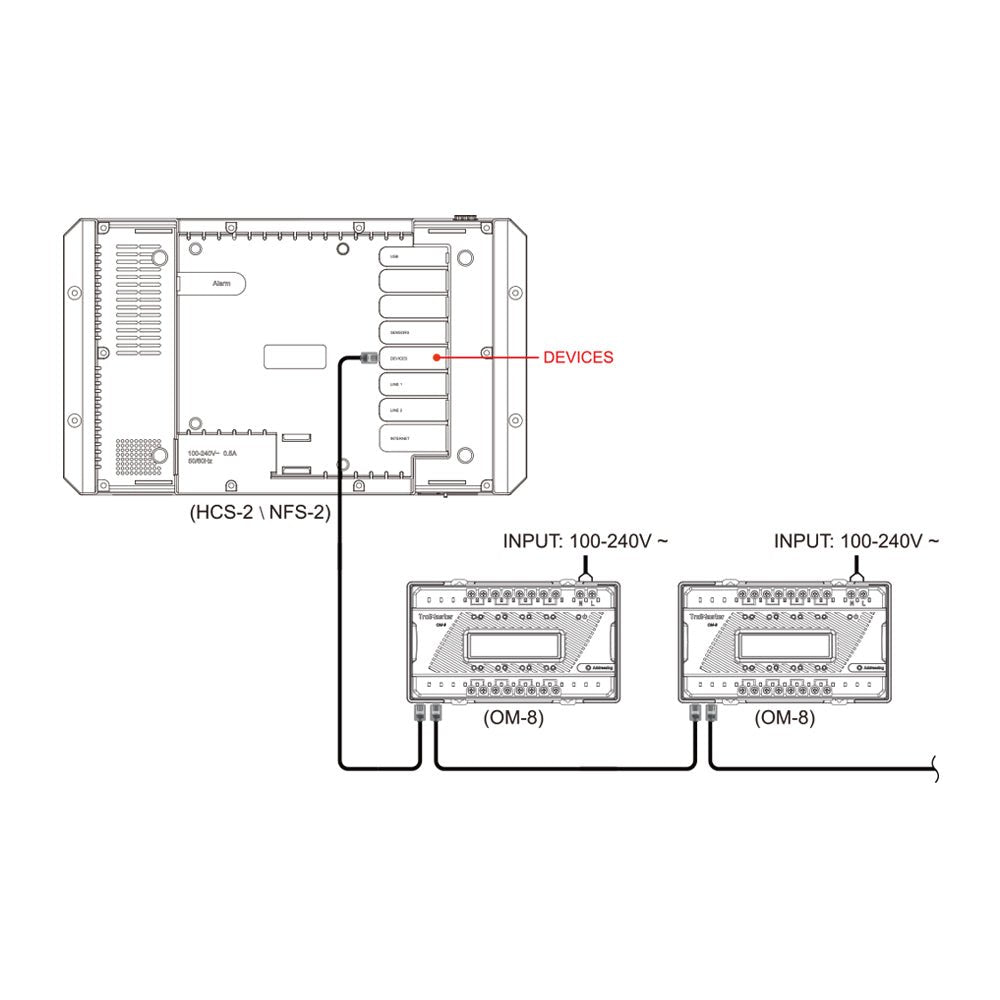

Connect it to the device port on the main controller using an RJ12 cable. After the module is addressed and added to your main controller, the main controller will send signals to control up to 8 individual outputs on the OM-8.

Features

• LCD Display, easy to set up and use
• Easy installation
• Overload protection on each of the 8 outputs @ 12 amps
• Each contact can be forced open or closed for a duration of 30 minutes

Package Contents

• (1) OM-8
• (1) 16 ft RJ12 Cable

*When used with the Aqua-X Pro system, OM-8 can activate pumps/solenoids at a higher amperage of 12 A.
