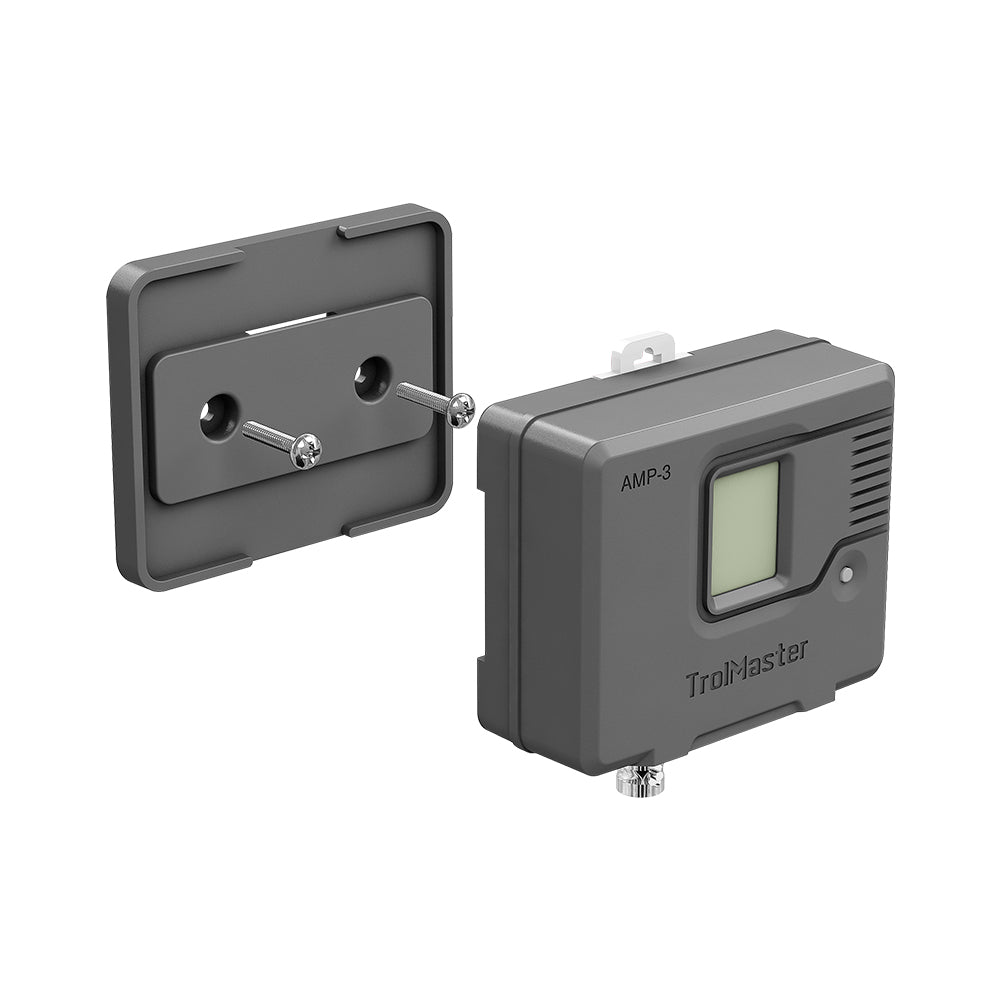

TrolMaster Aqua-X Sensor Board (AMP-3)

The AMP-3 Sensor Board is compatible with the
TrolMaster EC/Temp Sensor (PPH-1, PPH-2 and PPH -3)
and TrolMaster pH Sensor (PCT-1, PCT2 and PCT3).

Multiple AMP-3 sensor boards (maximum of 50) can be
connected to the NFS-2 Aqua-X Pro controller for multi-monitoring applications.

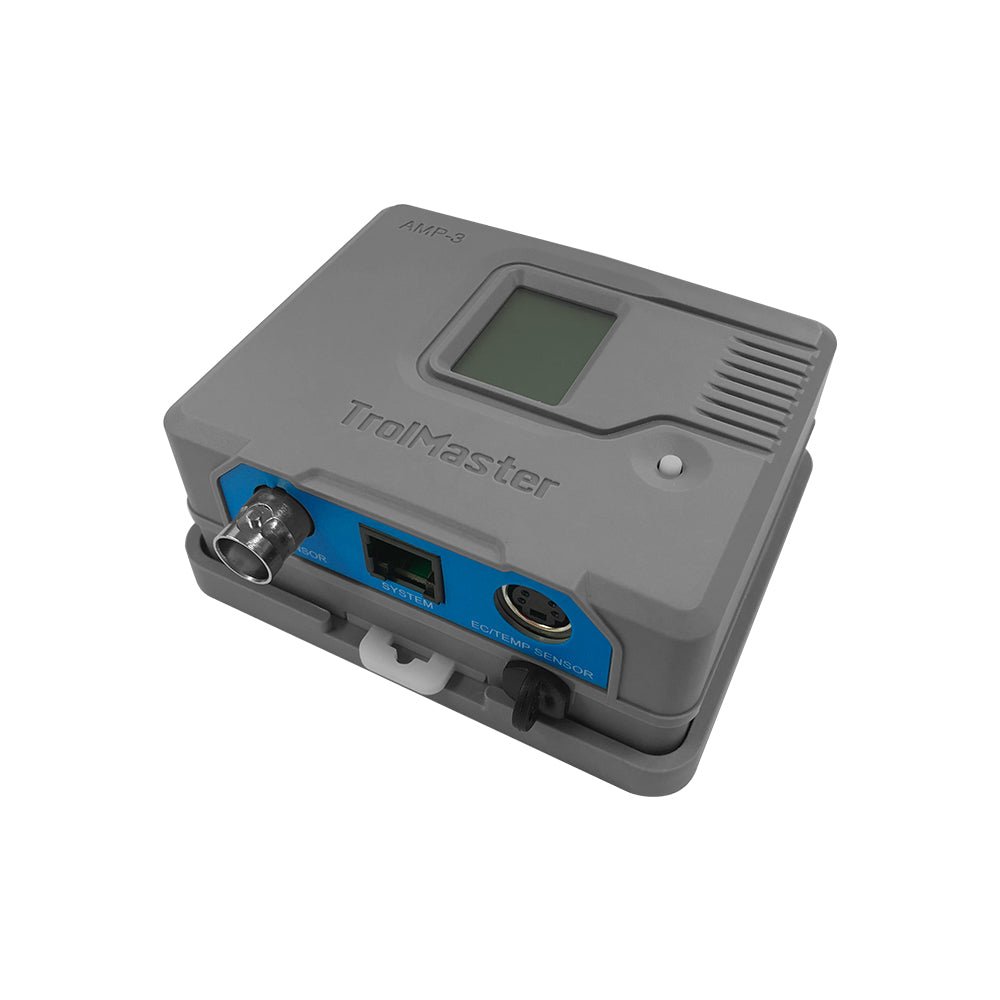

Connect the AMP-3 Sensor to the NFS-2 main controller using an RJ12 cable via “System”
terminal ; the pH Sensor via the BNC terminal; EC/TEMP terminal via Mini DIN terminal. Once

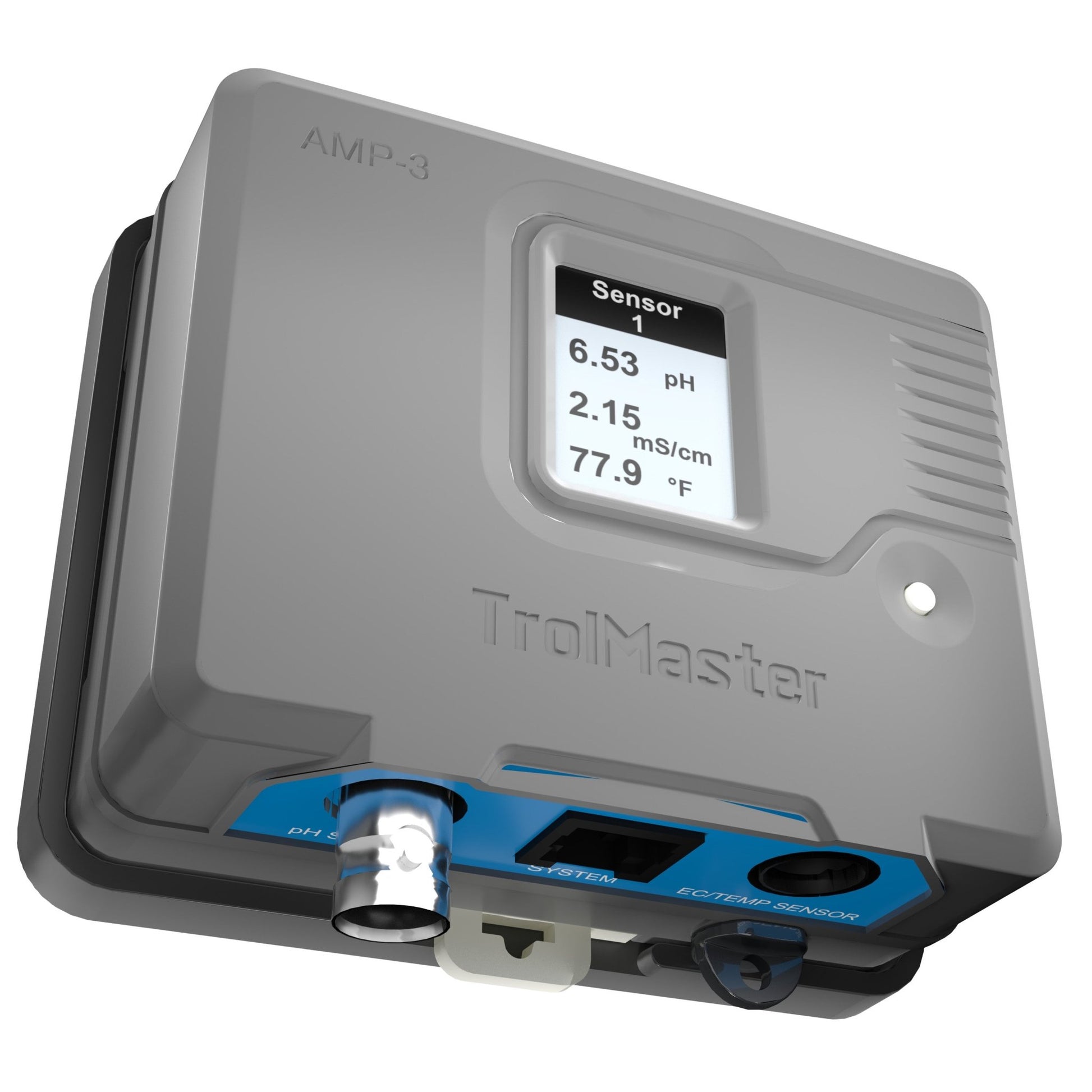

connected, pH level, EC level and water temperature will be displayed on both the AMP-3 LCD
screen and the Aqua-X Pro master controller screen.

Features

• 1. LCD Display for onsite monitoring
• 2. RJ12 connection for flexible installation
• 3. Addressing key for multiple units application

Package Contains

• 1x Sensor Board
• 1X 16 ft RJ12 Cable
• 1X 4ft RJ12 Cable
• 1X T-shaped Splitter

Specifications

• Working Environments: Temperature 32-122°F, Humidity≤90%
• Package Dimensions: 160mm(L) x 86mm(W) x 86mm(H)
