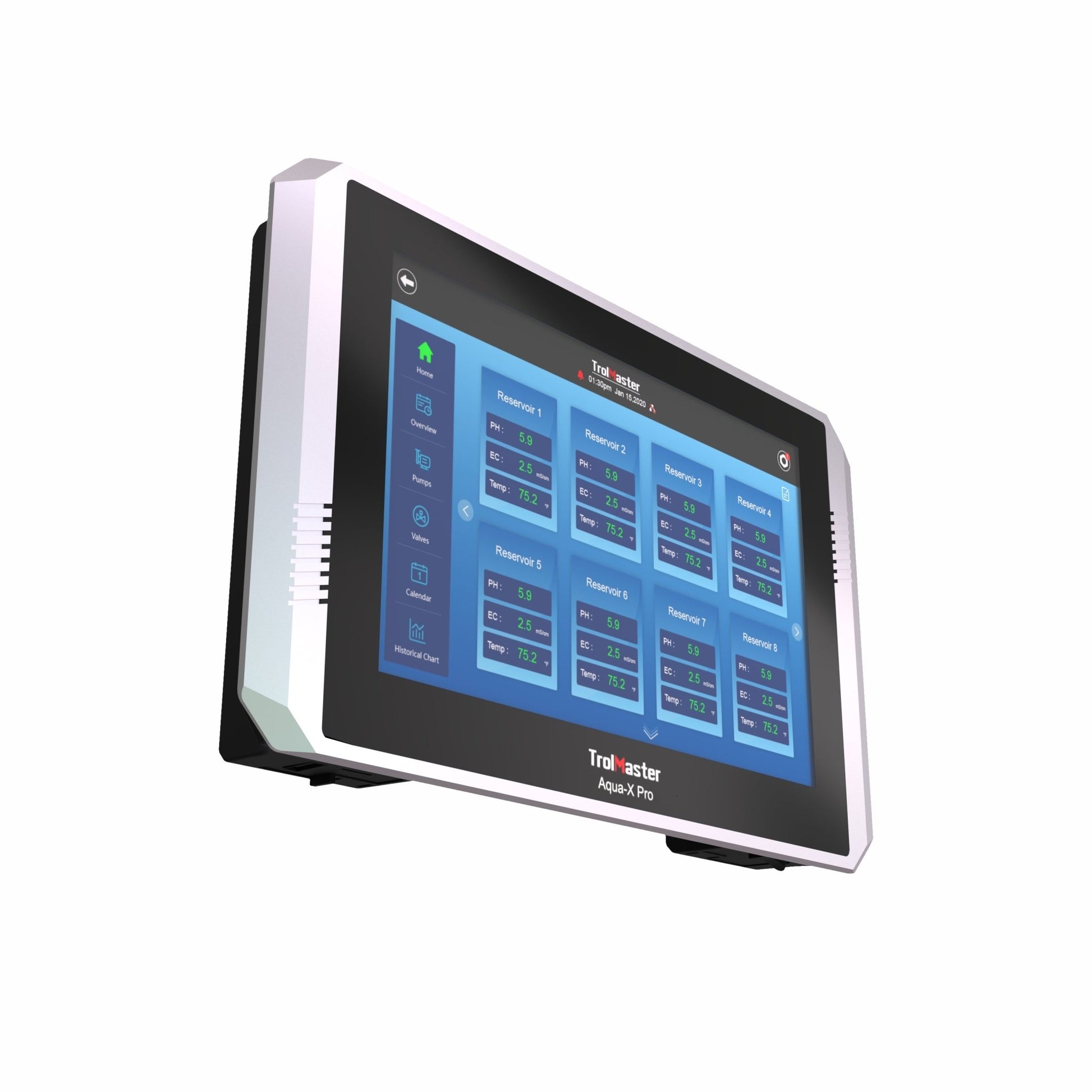

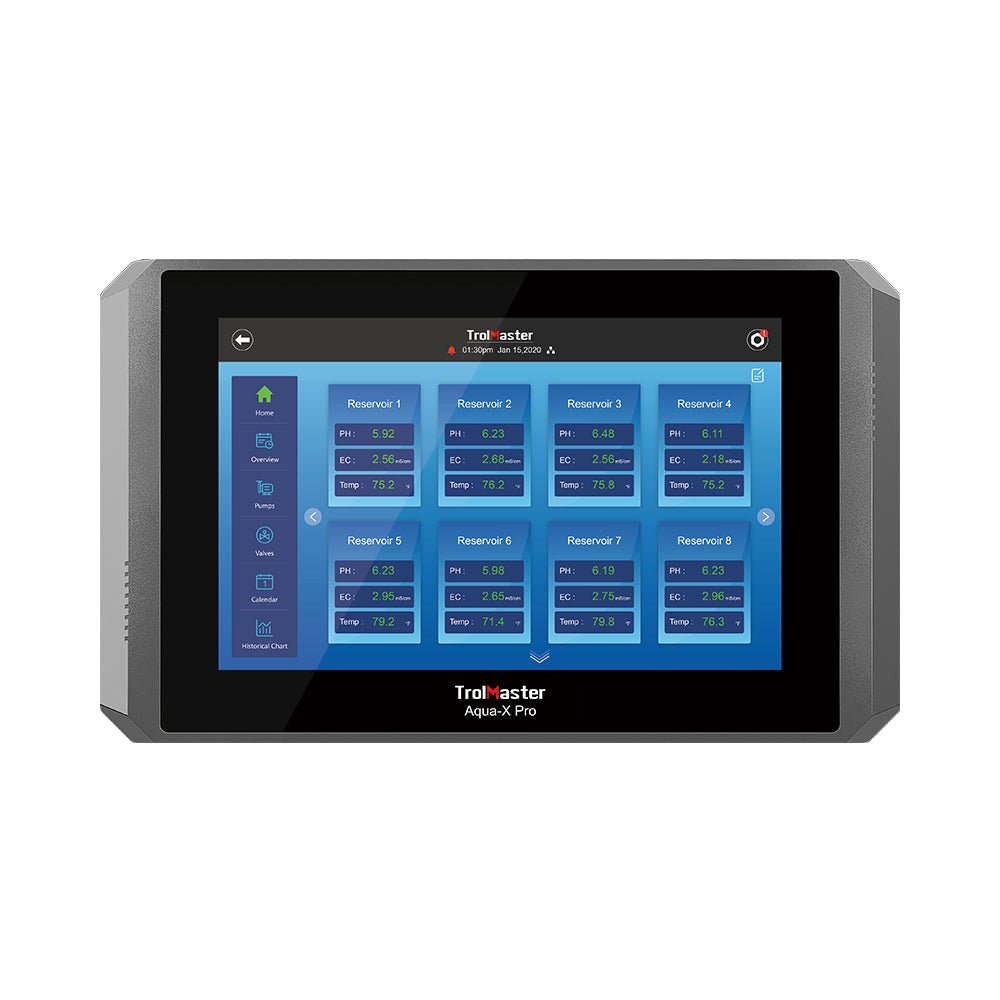

TrolMaster Aqua-X Pro Controller (NFS-2) w/AMP-3 Sensor Board

The NFS-2 can also monitor multiple water sensors that can measure pH, EC, temperature, and water content sensors. There is also a new optional DFW-1 flow-meter that serves multiple functions. Each of the solenoids and pumps can be "linked" to work together so that multiple growing areas can be controlled by a single NFS-2.

When combined with the AMP-3 (included), the optional WCS-1, WCS-2 sensors and the new DFW-1 flow-meter, the NFS-2 allows the user to monitor up to 50 sensors and receive mobile notifications when any problem is detected by the system.

The NFS-2 was created to allow users to customize their irrigation cycle and be able to control the irrigation events by using either the DFM-1 digital flow-meter, WCS-1, or WCS-2 moisture content sensors or by simple timers. Each device controlled by the NFS-2 can conceivably have an unlimited number of irrigation "events" each 24 hour day

Features

• 10’ touch screen - Phone monitoring (TM+) & web-based controlling
• Increased Product Capacity of up to 300 pumps and 300 solenoids
• Expanded Irrigation Schedule up to 50 individual schedules
• Multiple reservoir monitoring on pH, EC, and Temp (with AMP-3)
• Medium EC, Temp and Moisture monitoring (with WCS-2)
• Water consumption Volume monitoring (with DFM-1)
• Feed on Demand
• Feed by volume
• Auto-fill in the reservoir
• Calendar control for multiple days preset schedules
• Flexible Master pumps connections

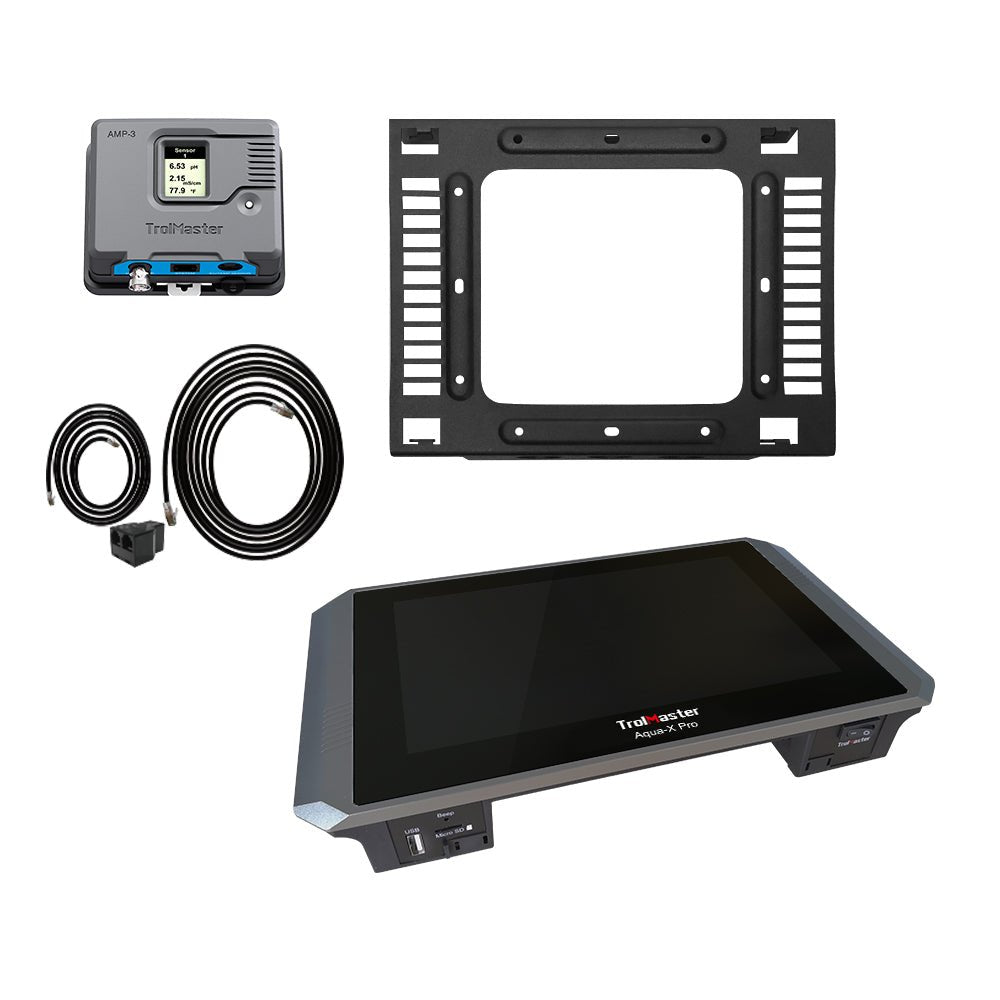

Package Includes

• 1x Aqua-X Pro
• 1x AMP-3
• 2x 12ft. RJ12 Cables

Specifications

• Input Voltage: 100-240V
• Certifications: ETL/FCC
• Degree of Ingress Protection: IP20
• Max Distance to Device to be connected: 1000 meter
• Nutrient Sensors (AMP-3, DFM-1, WD-1): Max 50 pc
• Medium Sensors (WCS-2, WCS-1): Max 50 pc
• PUMPS (OA6-24, OA6-110, DSP-1, DSD-1,DSE-1, OM-8): Max 50 pc
• VALVES (OA6-24, OA6-110, DSP-1, DSD-1,DSE-1, OM-8): Max 50 pc
• Working Environments Temperature 32-122°F, Humidity≤90%
