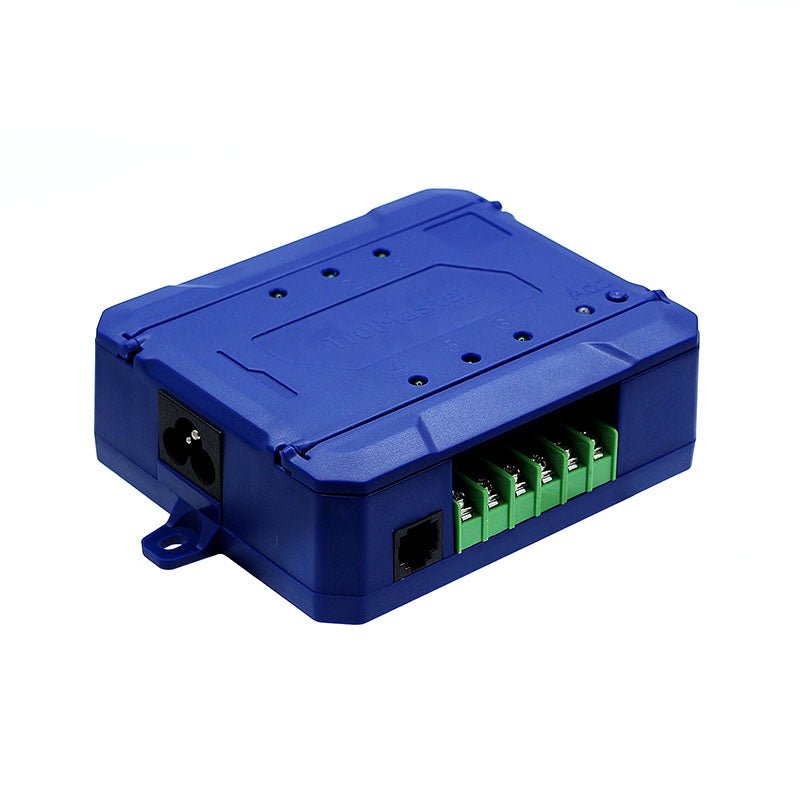

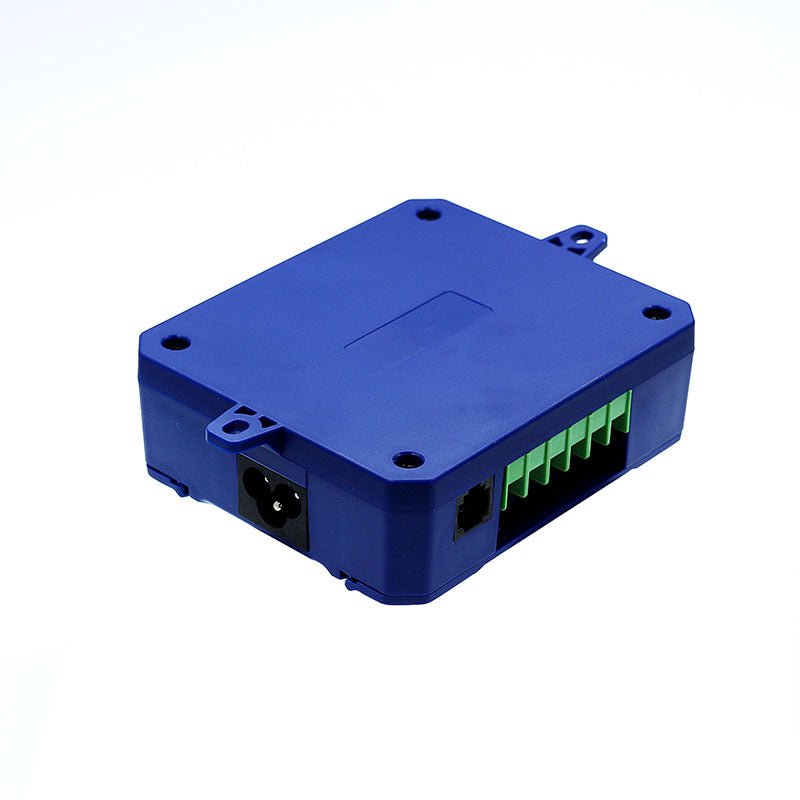

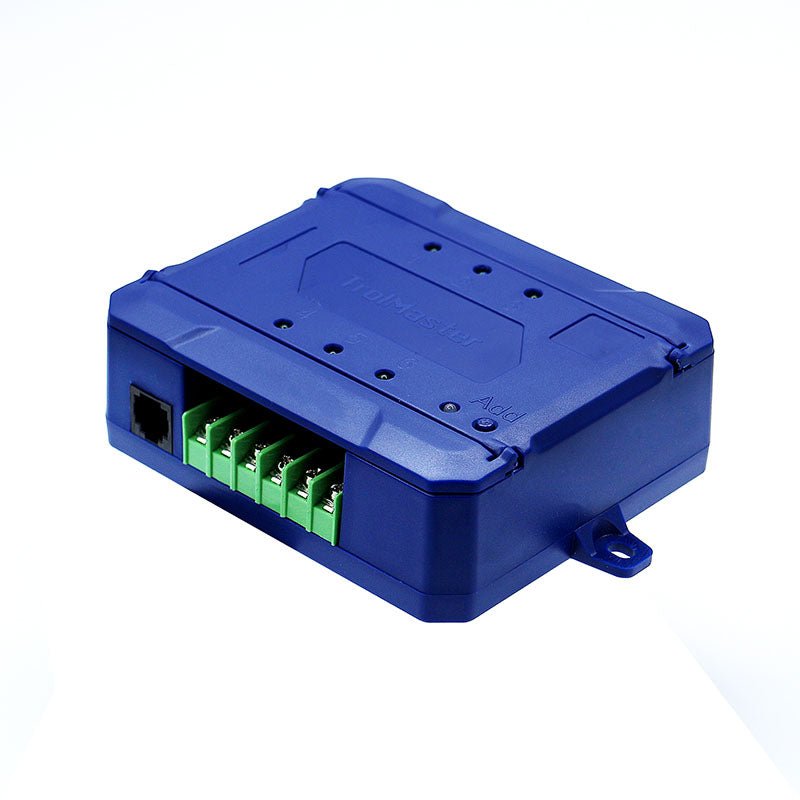

Trolmaster Aqua-X Control Board 6x24V Controlled Outputs (OA6-24)
Regular price
Sale price
$83.94
Regular price
$100.28
Shipping calculated at checkout.
Only 1 left in stock contact us for store pickup
🚚Lead Time: Normally ships same or next business day
This item is oversized and may be subject to additional shipping charges.
This product ships for free!
Couldn't load pickup availability
Product Details
Product Details
24V Control Board is specially designed for Aqua-X Irrigation Control System. It features 6 individually-controlled 24V outputs for the control of solenoid valves in the Aqua-X Control System.
Features:
- LED Power Indicator
- Addressing Button
- 6 Individually-Controlled 24V Outputs
- Individual LED Indicator for Each Output
- Double RJ12 Cable Sockets for Daisy Chain Connectivity

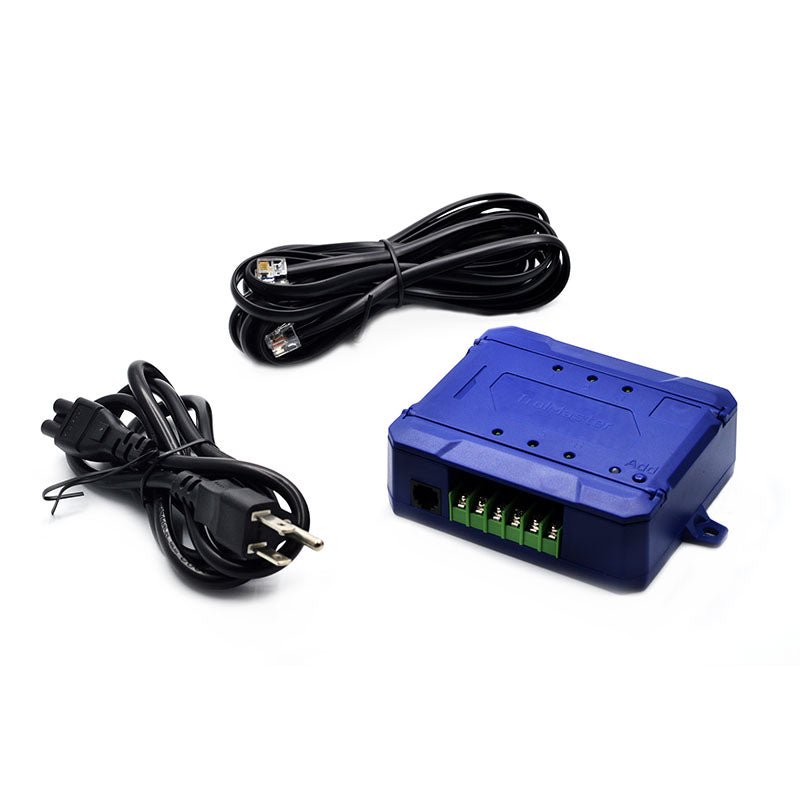

Includes:
- 1 x 24V Control Board
- 1 x 16ft RJ12 Cable
Specifications:
Input Voltage: 110-240 VAC
Max Input Current: 0.2A
Max Output Voltage/Current: 24VAC/0.2A per output
Working Environments: Temperature 32°-122°F, Humidity≤90%
Packaging Dimensions: 275mm(L) x 164mm(W) x 40mm(H)
Specifications
Specifications
| Brand | TrolMaster |
|---|---|
| Part Number | OA6-24 |
| Length | 1.5 in |
| Width | 11 in |
| Height | 6.5 in |
| Product Weight | 2.0 lb |
| Warranty | Yes |
