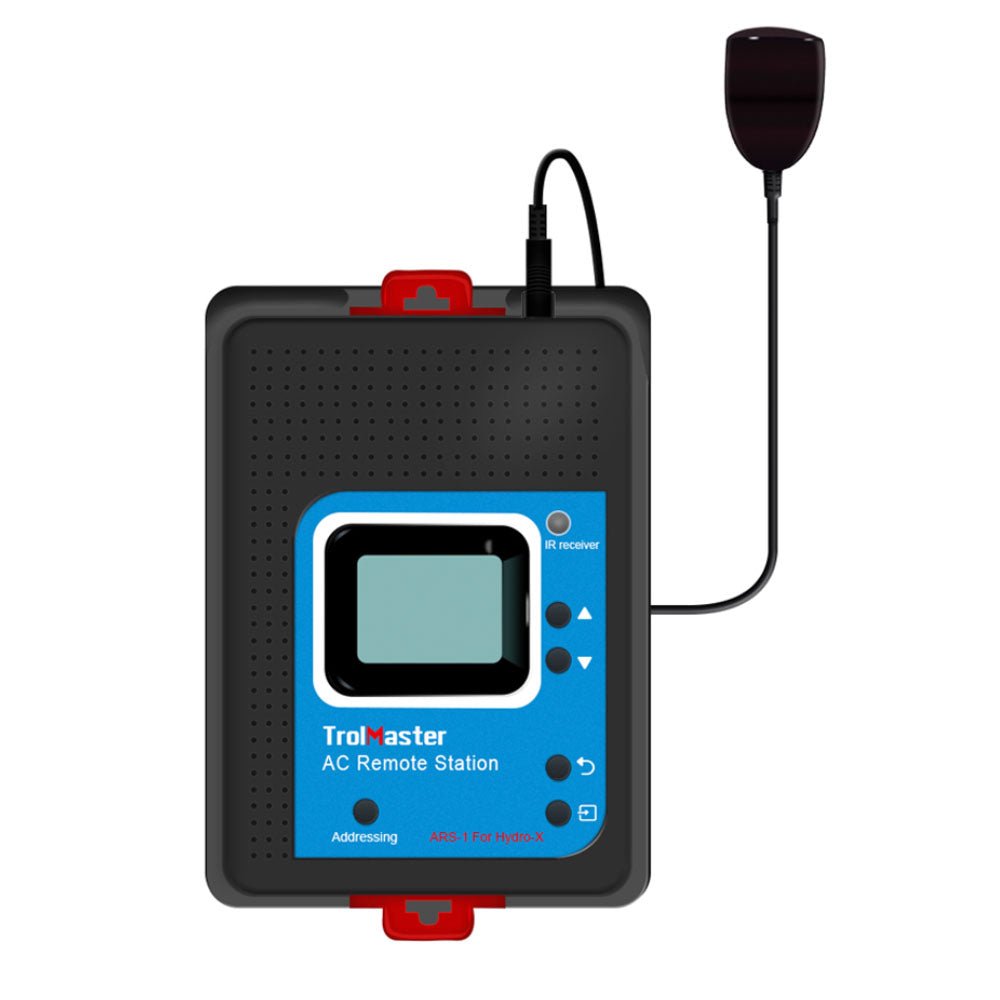

TrolMaster AC Remote Station (ARS-1)

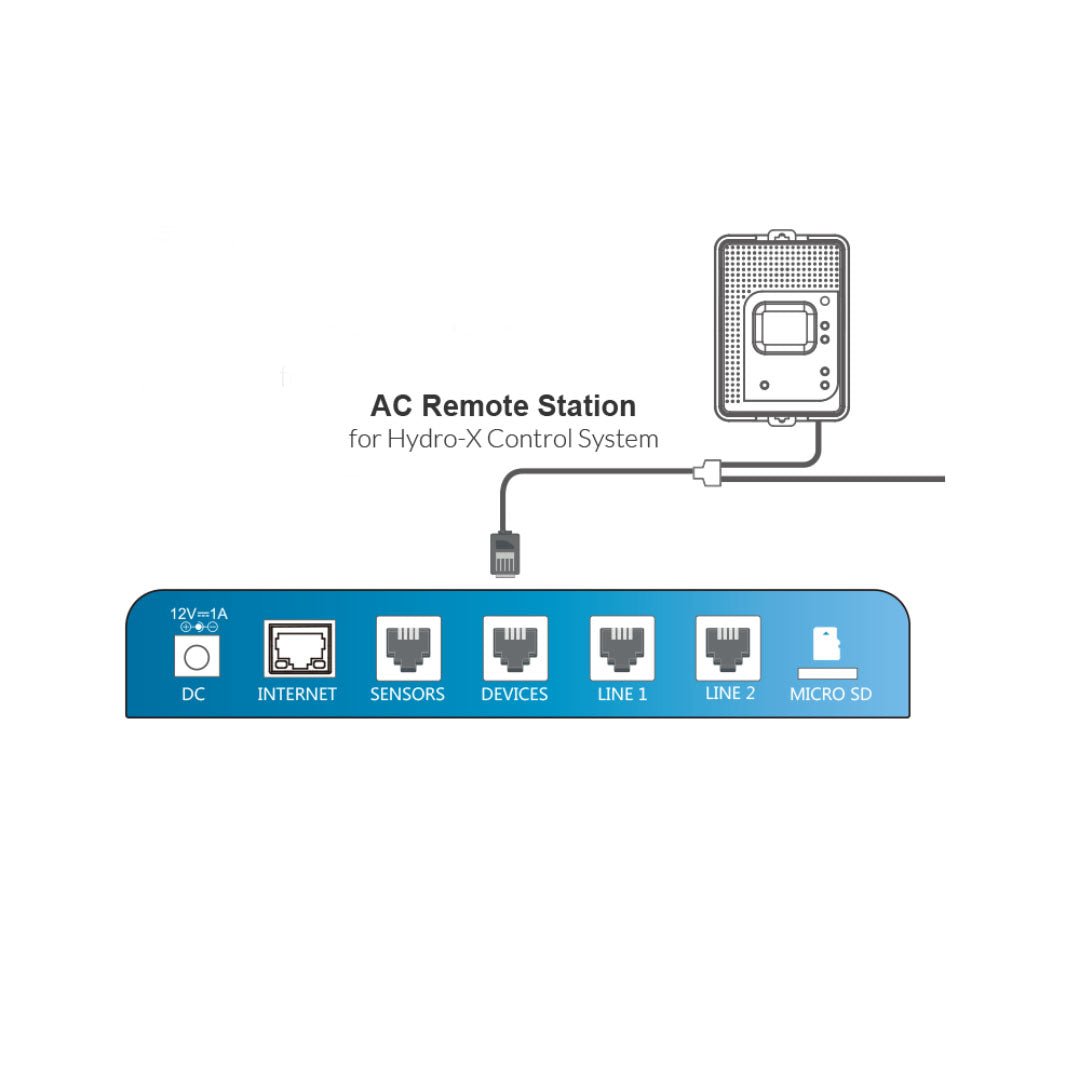

ARS-1 offers universal remote control for any IR (infrared) remote controlled AC such as a mini-split AC system. Connecting to the Hydro-X Control System, the user can use the ARS-1 Remote Station to learn and control any remote-controlled air conditioner easily and automatically. Choose your desired temperature setpoint for the Day / Night mode (see Temperature Settings in Hydro-X’s instructions), the ARS-1 will send the day/night setpoint to the remote-controlled AC based on the photocell sensor status automatically.

Includes:

• 1 x AC Remote Station (ARS-1)
• 1 x Signal Emitter
• 1 x 16ft RJ12 Cable
• 1 x 4ft RJ12 Cable
• 1 x RJ12 T-Splitter

Features:

• LCD Display, Easy Operation
• Seamless Connection with Hydro-X
• Micro-SD for Firmware Upgrade
• Address Assignment
• Plug & Play

Specifications:

Output Voltage: 0~11.5V

Maximum Current: 0.2A

Working Environment: Temperature 32-122°F, Humidity≤90%

Package Dimensions: 160mm(L) x 86mm(W) x 86mm(H)

G.W. per pack: 0.43kgs
