TrolMaster 35” Large Controller Cabinet for Hydro-X Pro （SCC-2）

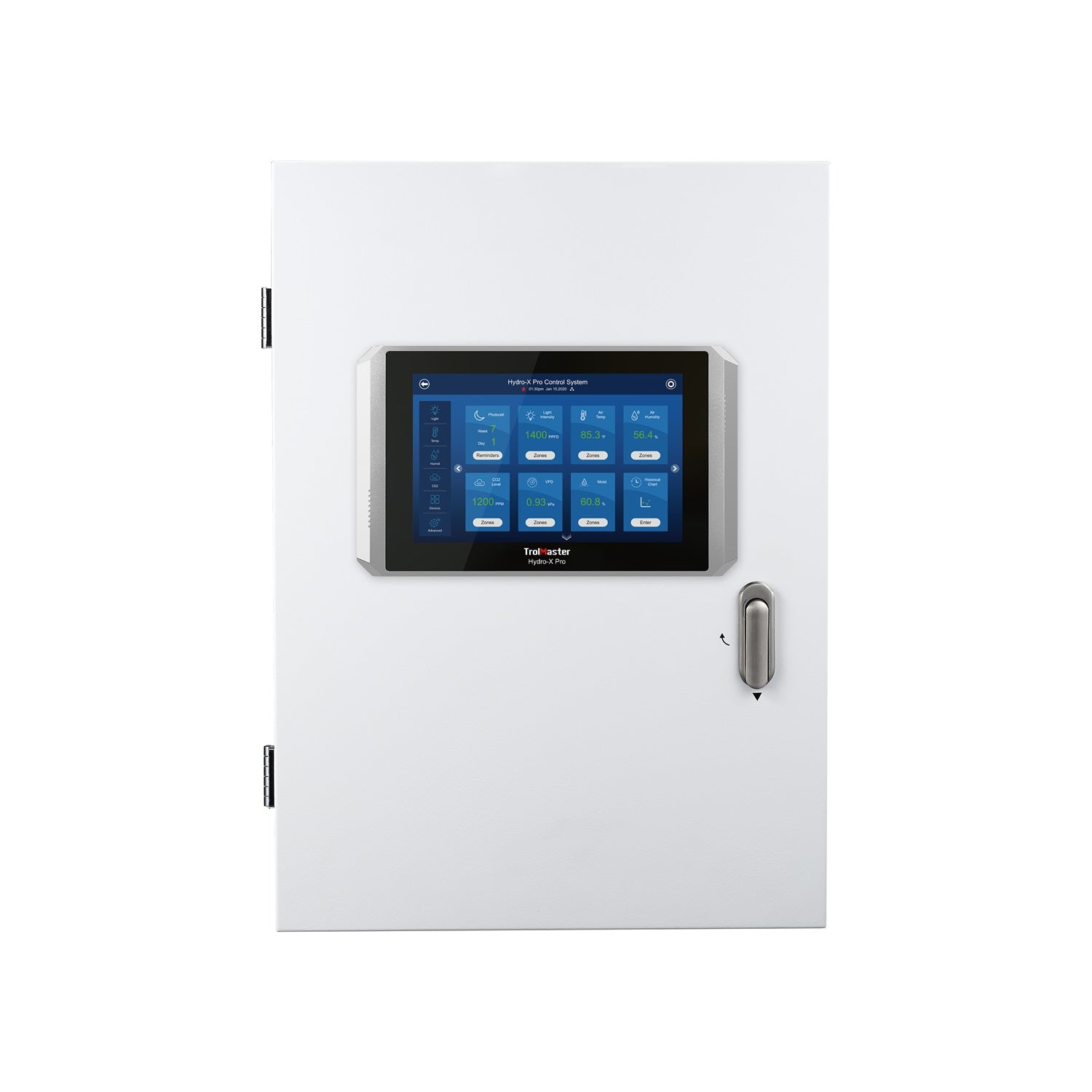

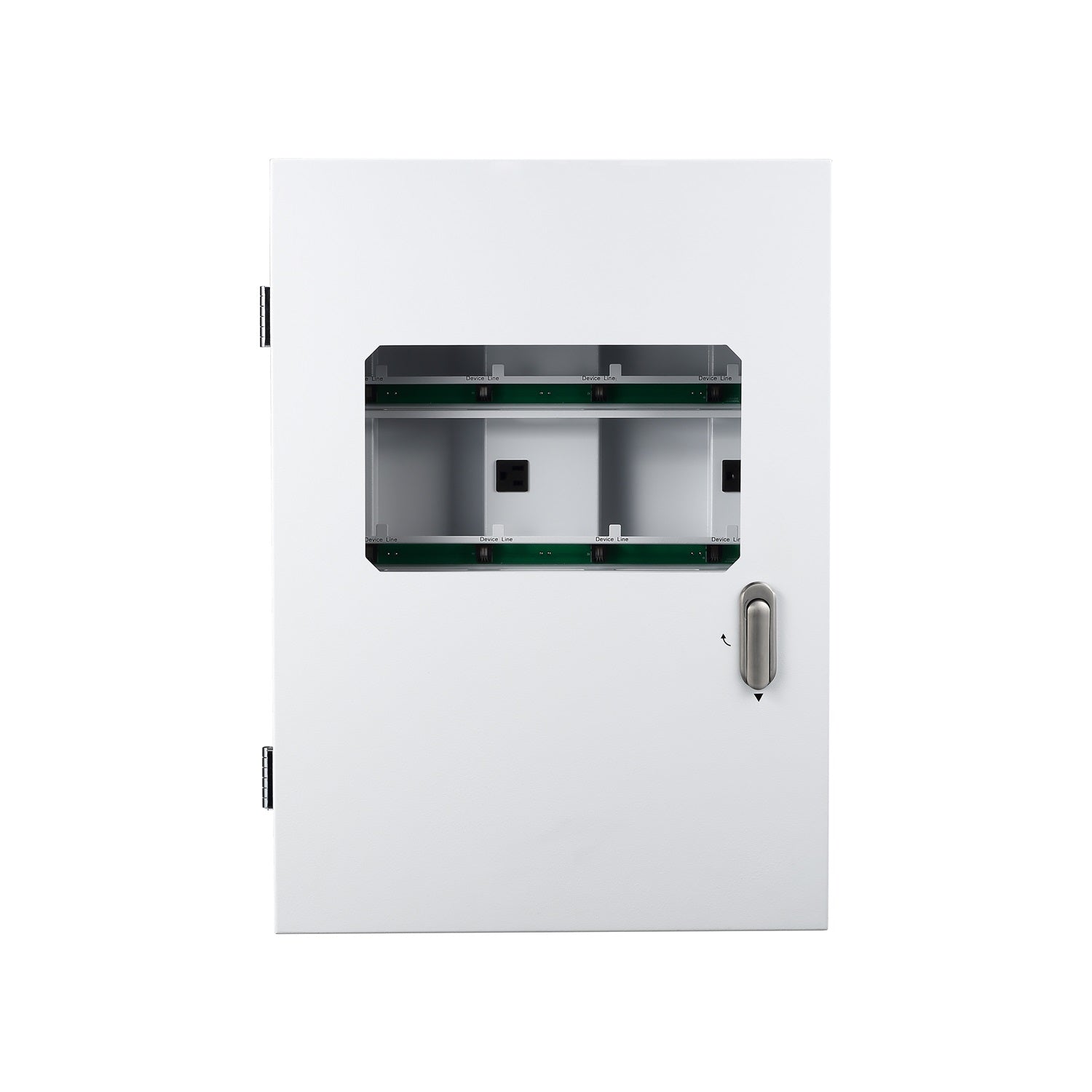

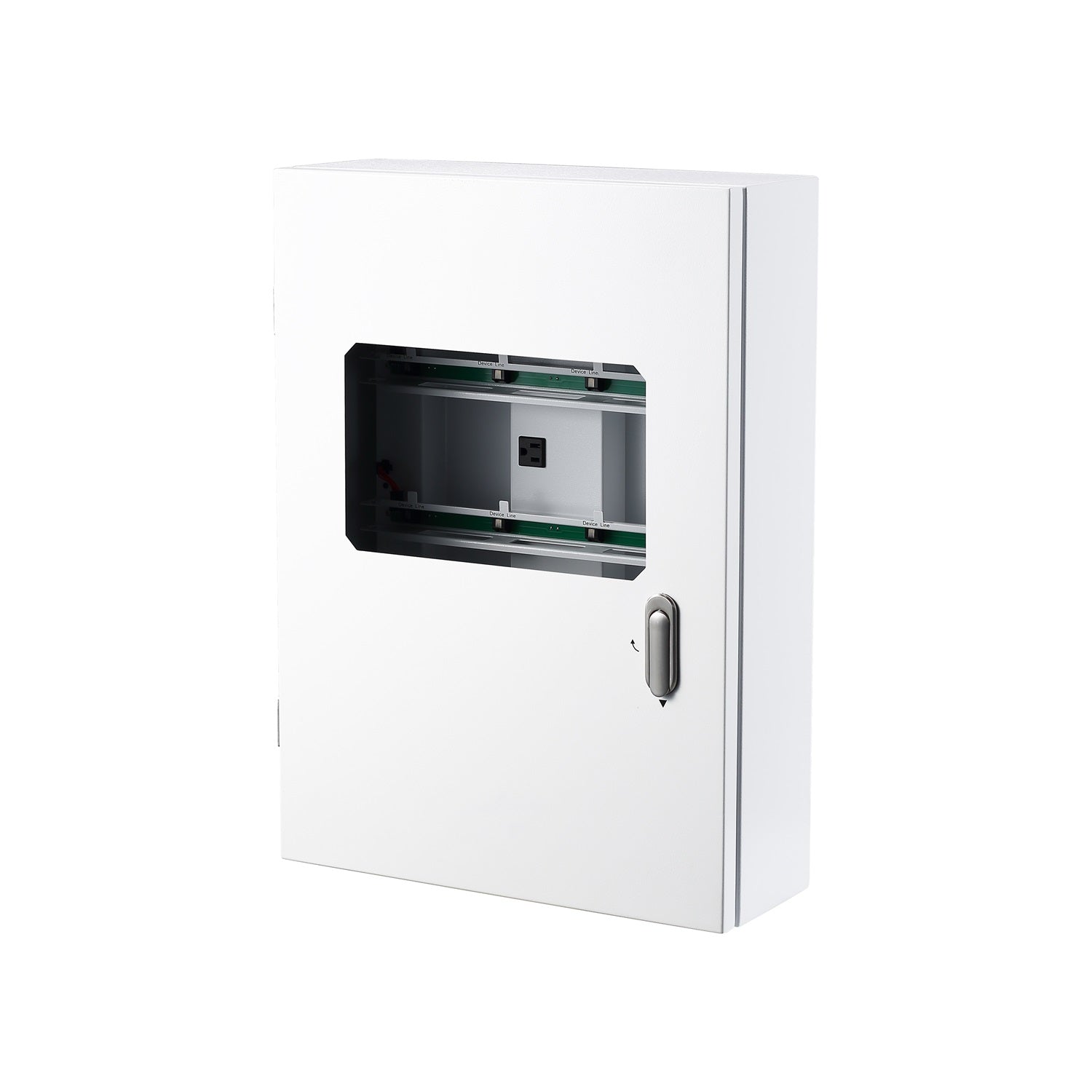

The SCC-2 35"Controller Cabinet is modular electrical enclosures and wire management systems for your TrolMaster Control system including Hydro-X Pro and Aqua-X Pro.

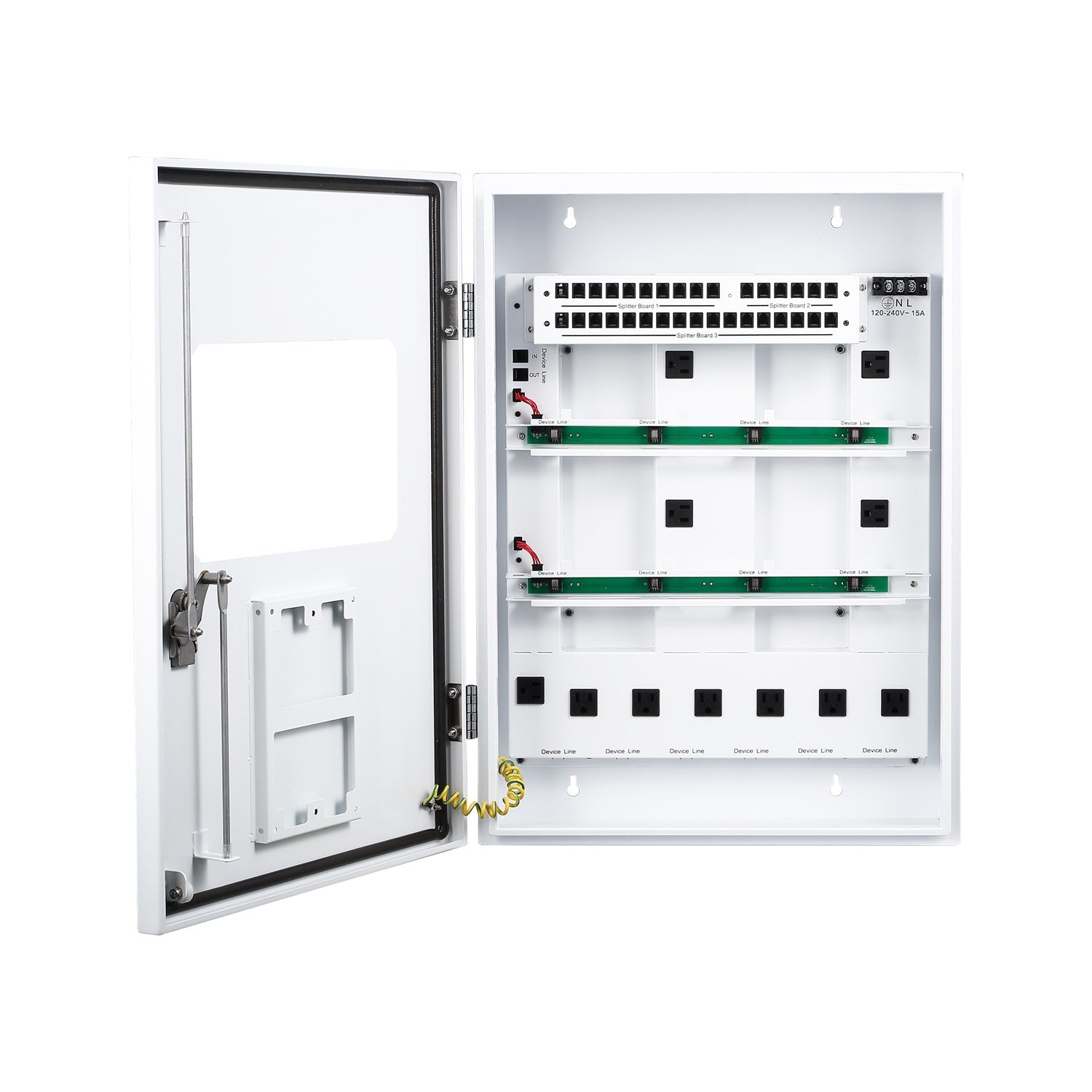

The enclosures are designed to allow any of TrolMaster’s controllers to be installed in a professional way. All of your device stations can be mounted inside the electrical cabinet to keep the device stations clean and dry. You’ll now be able to safely mount power supplies, modules, and organize your RJ12 cables with ease.

Features:

• Guaranteed Industrial Rated & Waterproof
• ALL-IN-ONE Controller & Device Module Housing
• Design Your Own Cabinet by Using Bi-directional RJ12 Cables
• Detachable Design
• Superior Safety System

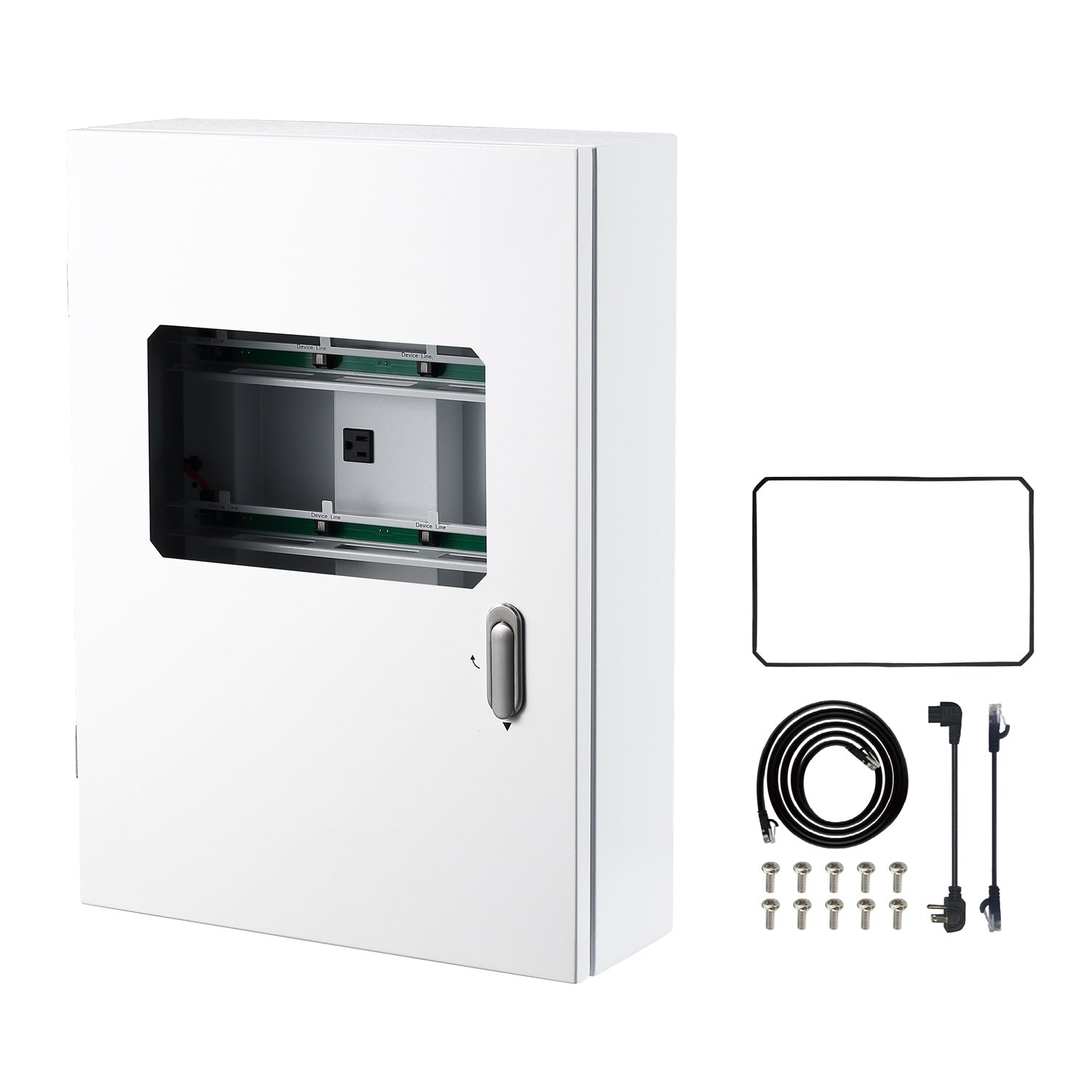

Package Contents:

• Controller Cabinet x1
• Installation Manual x1
• Long RJ-12 Cables x4
• Short RJ-12 Cables x26
• Power Cables (for OA6-24/OA6-110) x8
• OA6-24/OA6-110 Screw Set x 18

Specifications:

• Dimension: 35" (L) x 18" (W) x 6.26" (H)
• Carbinet Capacity:
  • Splitter Board #1: 10 ports (top)Splitter Board #2: 6 ports (top)
  • Splitter Board #3: 17 ports (top)
  • Splitter Board #4: 4 x 4 ports (middle splitter bars)
  • Splitter Board #5: 6 ports (bottom)
• Power Outlet: 8 + 1 + 6
• Operating Conditions:
• Enclosure Rating: IP56 (equivalent to NEMA 4X rating)
• Temperature Resistance: 32°-104°F
• Input Voltage: 120V
• Maximum Amperage: 15A

*Note: In order to achieve the IP56 standard, you must use the provided “controller rubber gasket” and perfectly fit the gasket between the controller and cabinet door.
