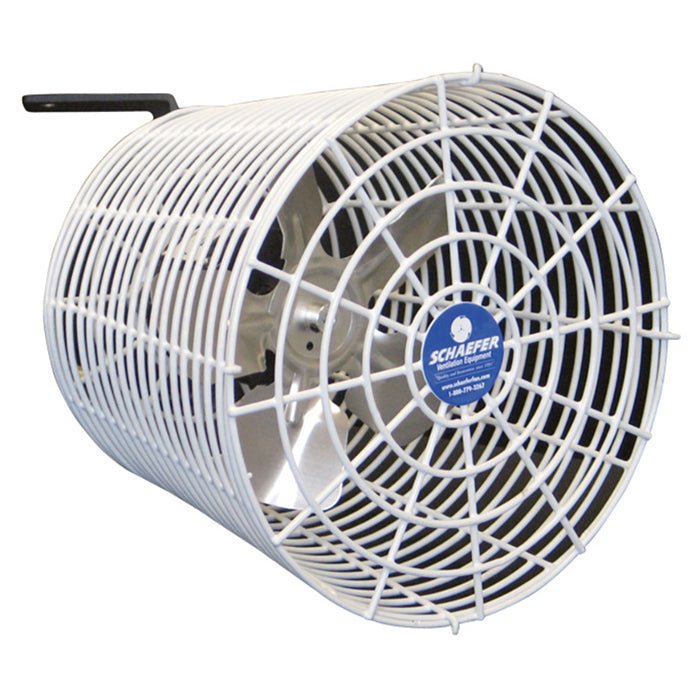

Schaefer Versa-Kool Circulation Fan 8in
This item is oversized and may be subject to additional shipping charges.
This product ships for free!
Couldn't load pickup availability
Product Details
Product Details
Schaefer Versa-Kool Circulation Fan 8in
Reduce heat stress and improve air quality with Schaefer’s uniquely designed circulation fans. Unrivaled in the market, these fans are engineered to produce greater air movement and superior cooling no matter the application. You don’t hear them. You don’t see them. You only feel them!
Also known as Horizontal Air Flow (HAF) fans, these fans move air in a coherent horizontal pattern creating a gentle ‘racetrack’ air flow pattern needed in greenhouses to maximize heat distribution and humidity control by mixing the air, from ceiling to floor.
Features
- Deep guard design for unmatched performance, low noise levels and safety without sacrificing airflow.
- Matched high-quality motors and blades for maximum efficiency.
- Powder coated steel guards for increased durability and corrosion resistance.
- Hot dipped galvanized guards on VK12-GA and VK20-GA models for even greater rust protection.
- Powder coated steel mounting bracket and power cord included.
- Wide variety of mounting options available for flexible and easy installation.
- Variable speed controls available.
- Misting kits available for even greater cooling.
- Made in the USA.
Specifications
| Air Velocity (Min / Max) | TBD / TBD |
| Blade Color | Metallic |
| CFM | 450 |
| Drive | Direct |
| Enclosure | TEAO |
| Frame Size | 3.3 |
| Mount Included | VS12FMT |
| Phase | 1 |
| Speeds | 1 |
| VFD Compatible | No |
| CMF/Watt | TBD |
| Power Cord | Included / Not Hard Wired |
| Diameter | 8in |
| Frequency | 60Hz |
| Guard Color | White |
| Mount Type Included | Ceiling |
| Amps | 0.52A |
| Number of Wings | 5 |
| Power | 1/22HP |
| Net Weight | 7.0lbs |
| Switch | Not Included |
| Voltage | 115 |
| Maximum RPM | 1550 |
| Air Velocity | TBD |
| Blade Material | Aluminum |
| CFM Circulation Standard | ANSI/AMCA Standard 230-99 |
| Product Color | White |
| Product Shipping Dimensions | 12" x 11" x 14" |
| Speed Control Compatible | No |
| Able to Ship Small Parcel | Yes |
| CFM Range | <1000 |
| Cord Length | 5ft |
| Fixed / Portable | Fixed |
| Guard Material | Powder Coated Steel |
| Oscillating | No |
| Country of Origin | USA |
| Guard Spacing | 1/2 - 1 UL507 |
| CFM/Watt (@0.10") | TBD |
| CFM/Watt (@0.05") | TBD |
Specifications
Specifications
| Brand | Schaefer |
|---|---|
| Part Number | PIN-VK8 |
| Product Weight | 8.0 lb |
