Fluence M12 Flex Dimming Extension Cable, M12 Threaded Connectors - 5 Feet

Complete Fluence Dimming & FLEX Cable Guide w/Diagrams - M12

Complete Fluence Dimming & FLEX Cable Guide w/Diagrams - M16

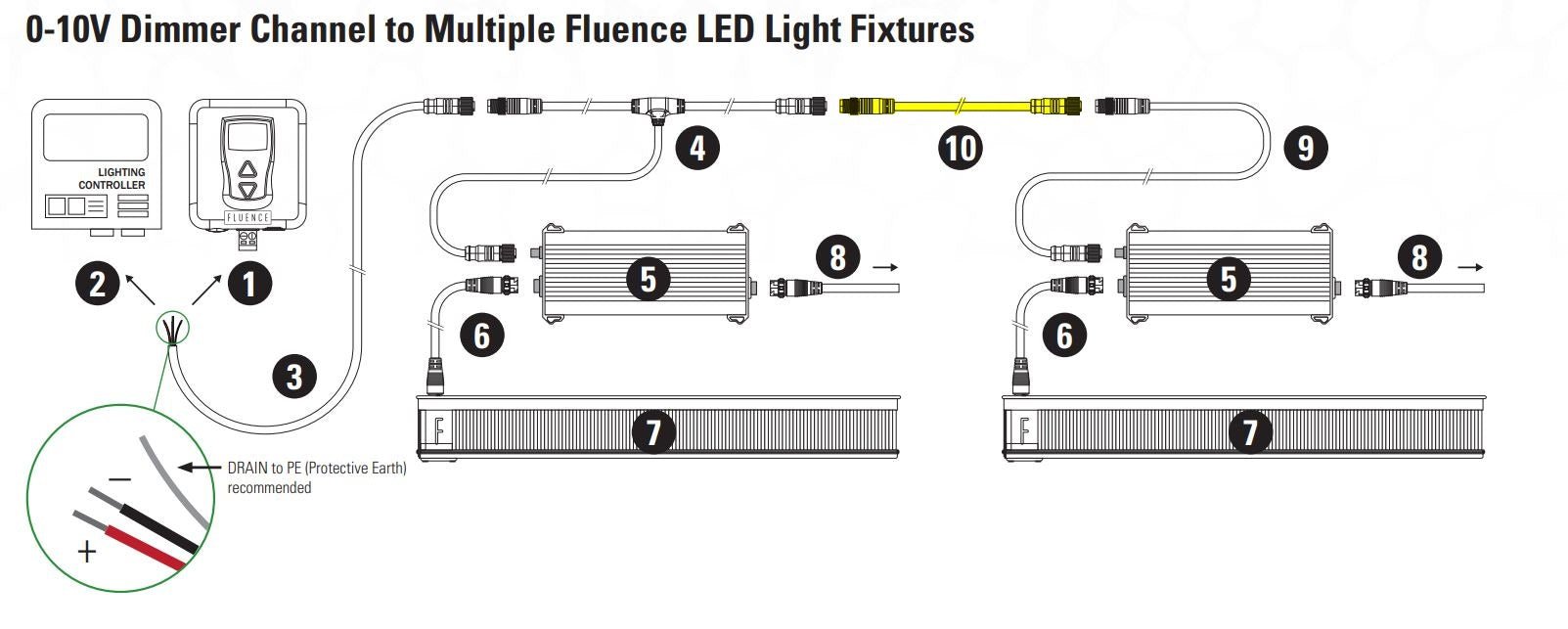

Use this Dimming / FLEX Extension Cable to create extra distance between fixtures, or to extend the distance between the dimmer and the first fixture.

DC FLEX DIMMING CABLE SYSTEM

These cables provide a low-cost solution to connect multiple power supplies for dimming. When grouped, independent dimming control zones are formed, organized, and isolated in case of problematic environmental factors.

FEATURES AND BENEFITS

• Plug-and-play “T” cables and cable extensions with matching connectors. No wire cutting or stripping is needed, reducing installation time and cost.
• Multiple cable length options are available to create dimming zones with various configurations.
• IP 65 rating ensures full protection from environmental factors from lighting control panel to dimming ports on power supplies.
• 100% compatible for all Fluence products with either pushlock or threaded connectors.
• Ground shield ensures maximum electrical performance for low voltage dimming signals.

Fluence part #: CDMA-71613

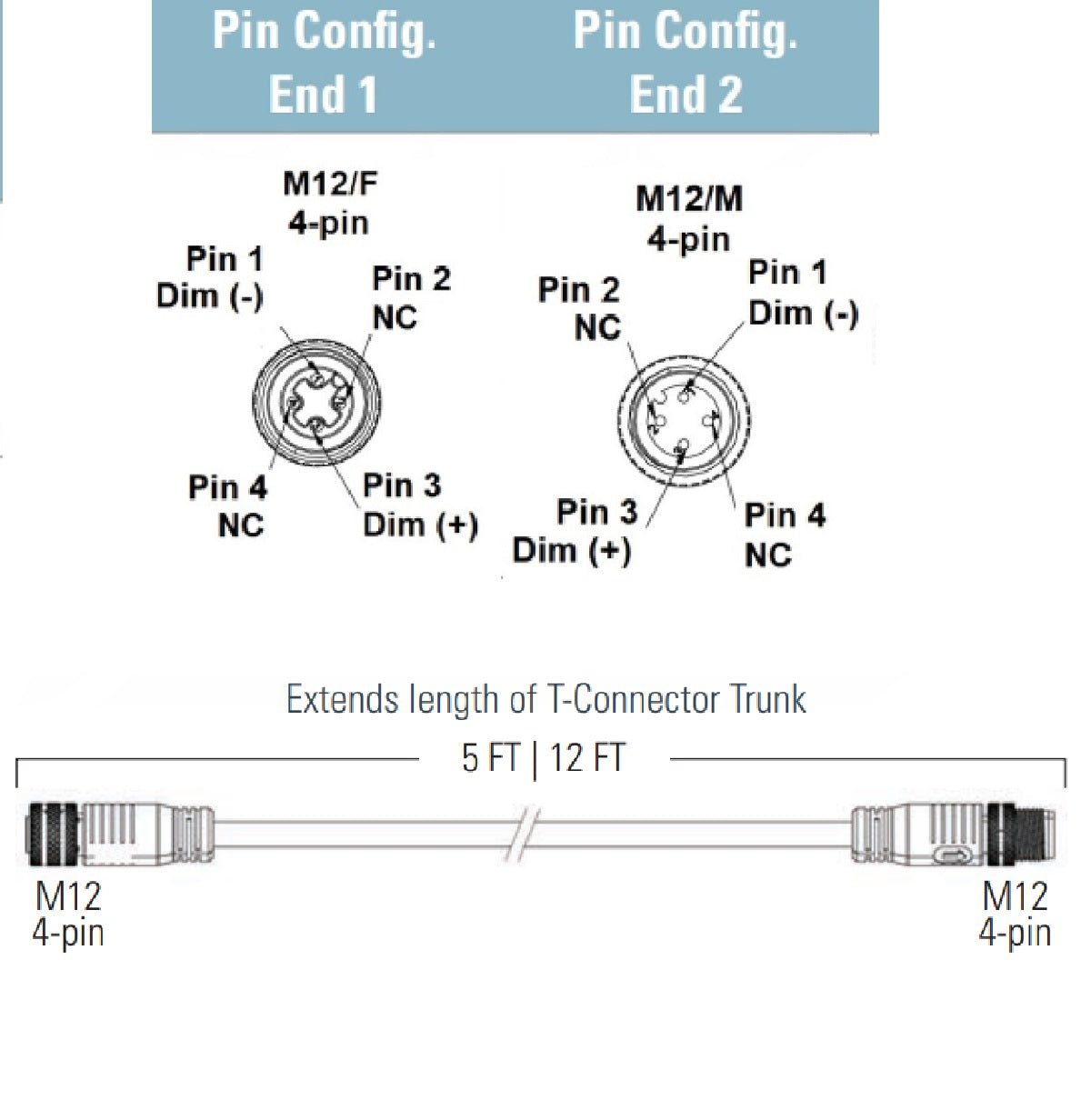

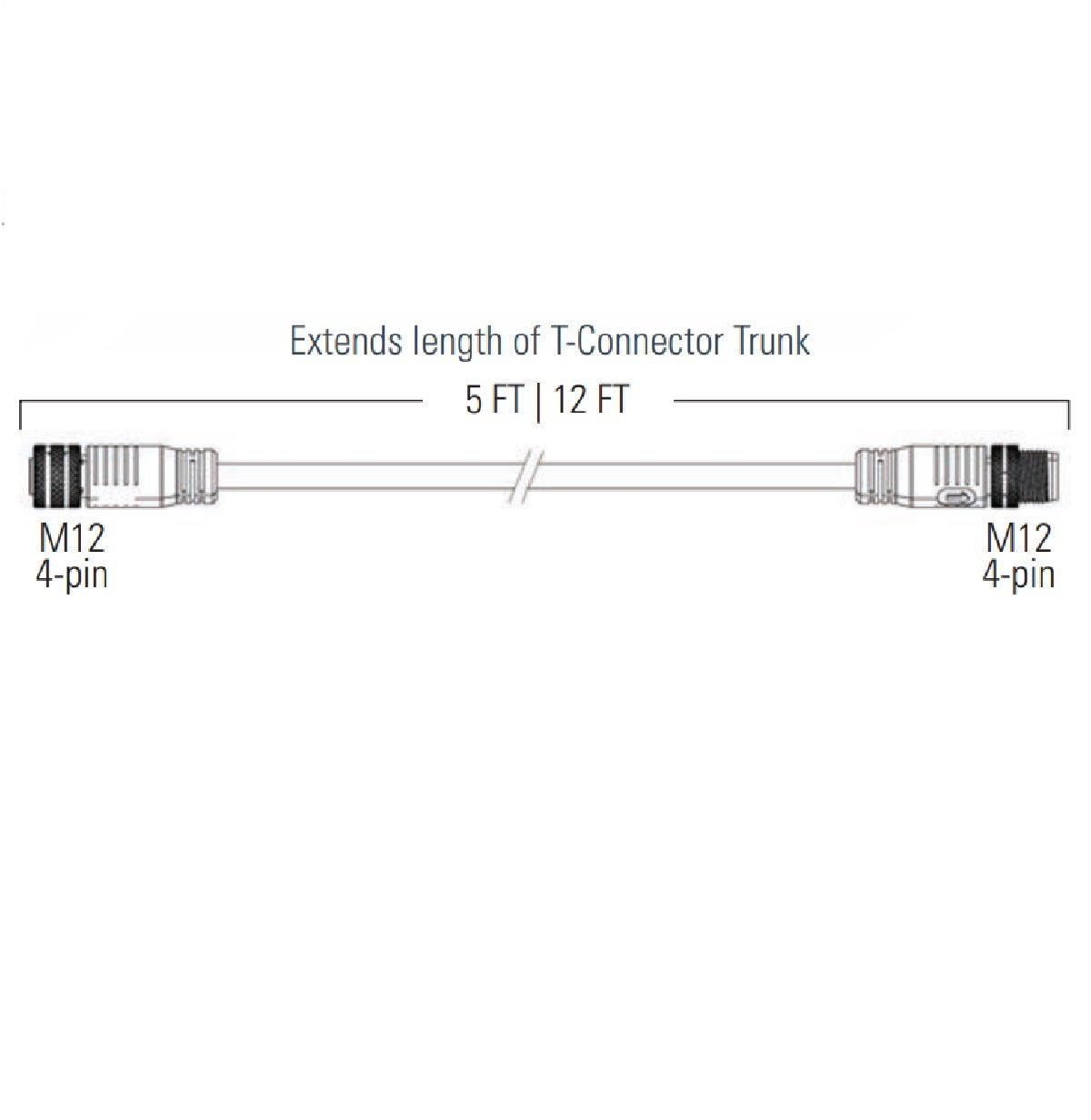

This trunk extension cable is compatible with Light Fixtures with PSU2 (M12) power supply. This cable is 5 feet in length. The Max DC Volt rating is 12V. The Max DC Current rating is 7A. The connector end 1 is a threaded female M12 4-pin. The connector end 2 is a threaded male M12 4-pin. The cord type is AWM UL 21996/UL 22190 2X20 AWG/ 0.5mm², plus drain. The maximum quantity is up to 50 connected light fixtures per branch. The rated mA capacity of the light controller/dimmer used may support fewer fixtures per branch. The maximum distance between the first and last light fixtures is 200-300 feet. A single-point shield grounding to earth is recommended.
