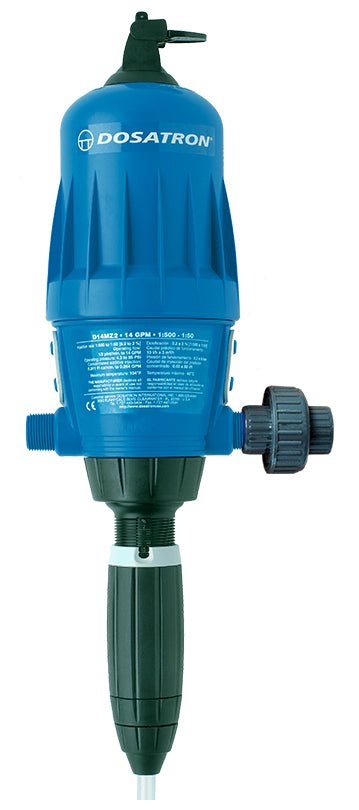

Dosatron Water Powered Doser 14 GPM 1:500 to 1:50 - 3/4 in (D14MZ2VFBPHY)

Dosatron is a passive precision fertilizer doser that accurately mixes from the pressure of your incoming water. Inject nutrients, supplements/additives and pH adjusters into irrigation water with ease. No electricity needed.

Simplify your nutrients by directly installing Dosatron Doser into the water supply line. The Dosatron Doser operates by using water pressure as the power source (no electricity needed). The water activates the Dosatron, which takes up the required percentage of concentrate. Inside the Dosatron, the concentrate is mixed with the water. The water pressure forces the solution downstream. Operating pressure range is 4.3 to 85 PSI and water flow range is 0.05 to 40 GPM. Injection capabilities of 1:500 to 1:50 (0.2 to 2%) [ 0.256 to 2.560 ounces per gallon]. Includes mounting bracket, suction hose, bypass, union, weighted strainer, and quick start guide.

Seal Options

• Viton Seals
  Typically used for products with neutral to acidic pH. E.g. fertilizers, pesticides, acids (acidic pH adjusters), supplements, surfactants


• Aflas Seals
  Generally used for products with a higher than neutral to alkaline pH. E.g. alkaline pH adjusters, calcium hydroxide, calcium carbonate, potassium carbonate


• Kalrez Seals
  Used for extremely aggressive products such as Peracetic acid (also known as peroxyacetic acid, or PAA) products. E.g. ZeroTol, SaniDate, etc.
