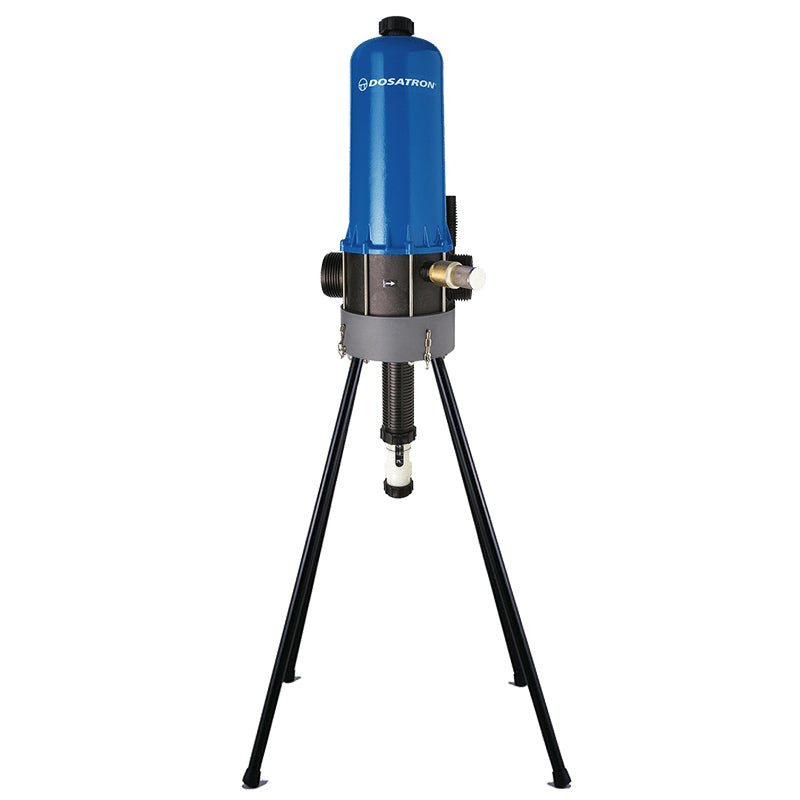

Dosatron Water Powered Doser 100 GPM 1:500 to 1:50 - 2 in [D20SVFII]

Simplify your nutrient feeding regiment by installing Dosatron Water Powered Dosing systems directly into the water supply line, allowing for direct inline feeding or filling reservoir tanks. The Dosatron Dosers operate by using water pressure as the power source (no electricity needed) which activates the doser by taking up the required percentage of concentrate and mixing it with water inside the unit. The water pressure then forces the solution downstream allowing you to daisy-chain the dosers to integrate all of your nutrients and supplements into a complete streamlined feeding system. All of the D-20 Series dosers include a manual bypass (on/off), suction hose with weighted strainer, set of four legs for mounting, and a vacuum breaker valve.Operating pressure range is 2 to 120 PSI and water flow range is 5 to 100 GPM (18.9 to 379 LPM).

• Dilution Range: 1:500 to 1:50 (0.2% to 2%)
• Water Flow Range: 5 to 100 GPM
• Operating Pressure Range: 2 to 120 PSI
• Available Housing Materials: Aluminum (Standard Blue)
• Seal Materials: Viton
• Dimensions: 55” x 15” (with legs); 42” x 15” (no legs)
• Weight: 47 lbs
• Connection Size: 2” NPT
• Maximum Temperature: 104o F
• Included Accessories: Set of legs, manual bypass, 6’ clear suction tube, strainer, vacuum breaker and operating manual

Seal Options

• Viton Seals
  Typically used for products with neutral to acidic pH. E.g. fertilizers, pesticides, acids (acidic pH adjusters), supplements, surfactants


• Aflas Seals
  Generally used for products with a higher than neutral to alkaline pH. E.g. alkaline pH adjusters, calcium hydroxide, calcium carbonate, potassium carbonate


• Kalrez Seals
  Used for extremely aggressive products such as Peracetic acid (also known as peroxyacetic acid, or PAA) products. E.g. ZeroTol, SaniDate, etc.
