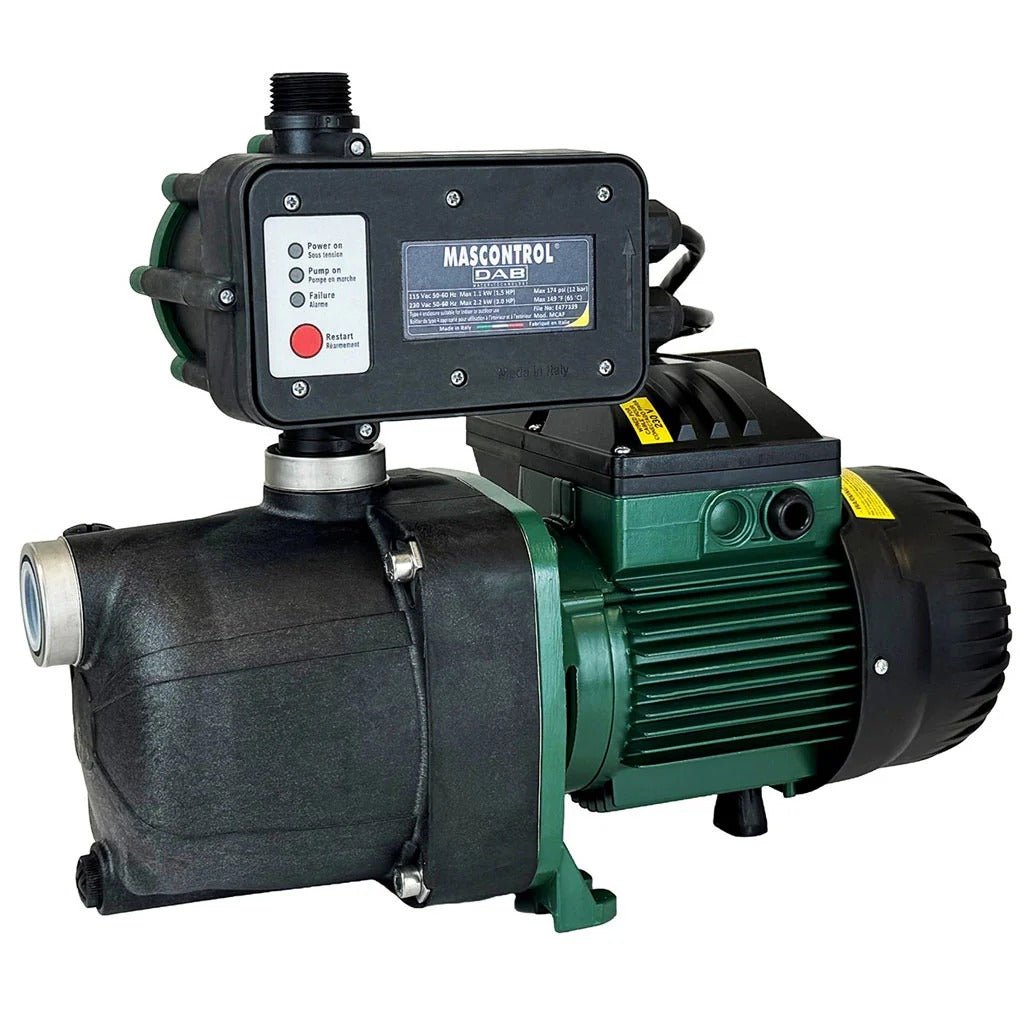

DAB JETCOM 132 Self-Priming Centrifugal Pump with Mascontrol

115V/230V Dual Voltage - 1.8 to 46.2gpm - 7.52 to 14.7 A - 1.36 hp - 87 psi

The DAB® JETCOM is a self-priming centrifugal pump engineered for dependable water movement in hydroponic, residential, and irrigation applications. Its durable technopolymer body and internal ejector allow it to handle air bubbles and small quantities of sand without losing prime. Equipped with Mas Control electronic protection against dry-running, it ensures safe and efficient operation. With a head up to 158 ft (48 m), strong suction capacity, and optimized motor cooling, the JETCOM delivers consistent flow for nutrient delivery, pressure boosting, and general water supply.

Note: Replaces Leader Ecotronic 130 (#LDRUS230001)

Liquid Quality Requirements: Clean, free from solid or abrasive substances, non-viscous, non-aggressive, non-crystallized, and chemically neutral.

Product Specifications

• Product Code: 60119501
• Power Supply: 115V / 230V, 60Hz Dual Voltage
• Operating Range: 1.8 to 46.2gpm; Head up to 203ft
• P1 Max: 1.57 kW
• P2 Nominal: 1 kW, 1.36 HP
• Input: 14.7- 7.52 Amps
• Capacitor: 80 μF, 450 Vc
• Maximum Operating Pressure: 87psi (6 bar)
• Maximum Ambient Temperature: 104°F
• Liquid Temperature Range: 32°F to +95°F (Domestic), 32°F to +104°F (Other)
• Protection: IP 44 (IP 55 terminal board protection)
• Insulation Class: F
• Installation: Fixed or portable in a horizontal position
• Pump Body & Motor Support: Technopolymer

Applications: Domestic water supply installations, small scale agriculture, gardening and wherever self- priming operation is necessary.
